ASTM A106 Carbon Steel Pipes
A53 Grade A,API5L Grade B,API5L Grade B /X42/ X52/ X60/ X65,PSL-1,PSL-2
Sizes: 1/2”- 48” Sch. 10, STD and XH
Single Random and Double Random Lengths
Seamless Carbon Pipe
ASTM A 53 Grade B,ASTM A 106 Grade B/C,API5L Grade B,API5L Grade B/ X42/ X52/ X60/ X65,ASTM A333 Grade 1/6,ASME,NACE MRO175
Sizes 1/8”- 26” Single Random and Double Random Lengths
Schedules Sch. 20 - Through XXH, with XXXH in 2-1/2” and 3”
Classification :
Carbon steel pipes
PRODUCT DETAILS
Description
Carbon steel pipes are divided into hot rolled and cold rolled (pulled) steel pipes.
Hot rolled carbon steel pipe is divided into ordinary steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, geological steel pipe and other steel pipe, etc.
Cold rolled (dialed) carbon steel pipe is divided into ordinary steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, other steel pipe, but also includes carbon thin-walled steel pipe, alloy thin-walled steel pipe
Carbon Steel Seamless Pipes – it contains more carbon and iron in its composition. Depending on the grade, trace amounts of silicon, manganese, and copper are permitted in varying quantities. Therefore, the Carbon Steel Seamless Pipe material is stronger and is extremely resistant to stress. In heavy-duty facilities, these features make the pipes applicable.
Carbon Steel Welded Pipes – are used in high-pressure conditions. In a range of industries, such as the transport of water and waste, the oil and gas industries, high-pressure applications, and chemical manufacturing, carbon steel pipes are commonly used.
Carbon Steel ERW Pipes – have various features like Lightweight, Corrosion resistance, structured appropriately, Precision engineered, intricate detailing, Economical, and more. These ERW pipes are used in Ship Building, Automobile, Boilers & Pressure Vessels, Railways, Oil & Petro Chemicals, Coal & Mining, Transmission Towers, and General & Heavy Engineering.
Carbon Steel LSAW Pipes – has some fine features such as easy installation, seamless finish, Rustproof, and more. As these LSAW pipes are expensive, they are not widely used in lower value non-energy applications such as water pipelines.
Specification&Standard
NOMINAL PIPE SIZE | OD (mm) |
NOMINAL WALL THICKNESS | |||||||||||||
DN | NB(inch) | ASME | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
15 | 1/2" | 21.3 | 2.11 |
| 2.41 | 2.77 | 2.77 |
| 3.73 | 3.73 |
|
|
| 4.78 | 7.47 |
20 | 3/4" | 26.7 | 2.11 |
| 2.41 | 2.87 | 2.87 |
| 3.91 | 3.91 |
|
|
| 5.56 | 7.82 |
25 | 1" | 33.4 | 2.77 |
| 2.9 | 3.38 | 3.38 |
| 4.55 | 4.55 |
|
|
| 6.35 | 9.09 |
32 | 1.1/4" | 42.2 | 2.77 |
| 2.97 | 3.56 | 3.56 |
| 4.85 | 4.85 |
|
|
| 6.35 | 9.7 |
40 | 1.1/2" | 48.3 | 2.77 |
| 3.18 | 3.68 | 3.68 |
| 5.08 | 5.08 |
|
|
| 7.14 | 10.15 |
50 | 2" | 60.3 | 2.77 |
| 3.18 | 3.91 | 3.91 |
| 5.54 | 5.54 |
|
|
| 8.74 | 11.07 |
65 | 2.1/2" | 73 | 3.05 |
| 4.78 | 5.16 | 5.16 |
| 7.01 | 7.01 |
|
|
| 9.53 | 14.02 |
80 | 3" | 88.9 | 3.05 |
| 4.78 | 5.49 | 5.49 |
| 7.62 | 7.62 |
|
|
| 11.13 | 15.25 |
90 | 3.1/2" | 101.6 | 3.05 |
| 4.78 | 5.74 | 5.74 |
| 8.08 | 8.08 |
|
|
|
|
|
100 | 4" | 114.3 | 3.05 |
| 4.78 | 6.02 | 6.02 |
| 8.56 | 8.56 |
| 11.13 |
| 13.49 | 17.12 |
125 | 5" | 141.3 | 3.4 |
|
| 6.55 | 6.55 |
| 9.53 | 9.53 |
| 12.7 |
| 15.88 | 19.05 |
150 | 6" | 168.3 | 3.4 |
|
| 7.11 | 7.11 |
| 10.97 | 10.97 |
| 14.27 |
| 18.26 | 21.95 |
200 | 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
250 | 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
300 | 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
350 | 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 |
|
400 | 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 |
|
450 | 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 |
|
500 | 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 |
|
550 | 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 |
| 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 |
|
600 | 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 |
|
650 | 26" | 660.4 | 7.92 | 12.7 |
| 9.53 |
|
| 12.7 |
|
|
|
|
|
|
700 | 28" | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 |
|
| 12.7 |
|
|
|
|
|
|
750 | 30" | 762 | 7.92 | 12.7 | 15.88 | 9.53 |
|
| 12.7 |
|
|
|
|
|
|
800 | 32" | 812.8 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 |
| 12.7 |
|
|
|
|
|
|
850 | 34" | 863.6 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 |
| 12.7 |
|
|
|
|
|
|
900 | 36" | 914.4 | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 |
| 12.7 |
|
|
|
|
|
|

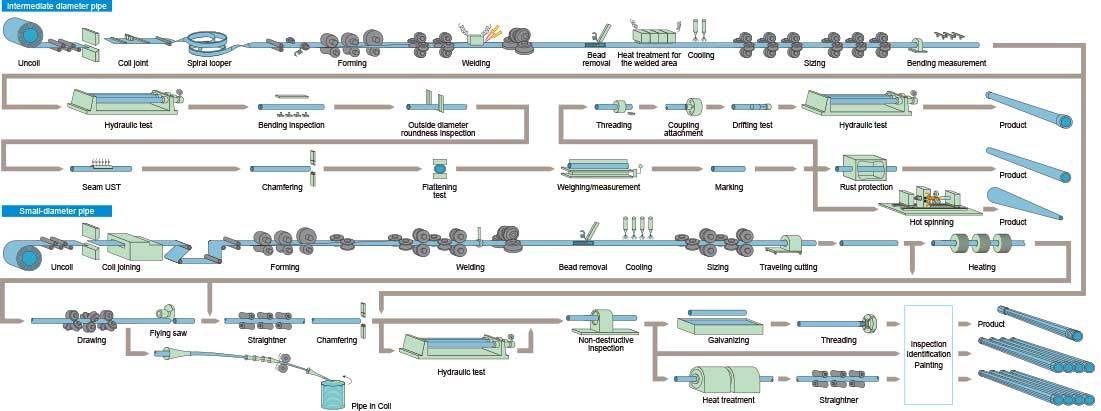

Process
Packing
Bundled package
On bundle of steel tube shall be the same in batch number, steel grade and specification.the rest of tubing less than one bundle should be tied into small bundles.
The weight of each bundle should be less than 50kg.The max weight cannot exceed 80kg of the bundle If there are special requirements.
When the length of the steel tube is greater than or equal to 6m, with at least 8 strapping bands for each bundle, divided into 3 groups and 3-2-3.
When the length of the steel tube is less than 6m, and each bundle is tied at least 5 knots and divided into 3 groups, which are 2-1-2.
When the length of the tube is greater than or equal to 3m, and each bundle is tied with at least 3 bands, divided into 3 groups, 1-1-1 showed below
Wooden box package
The wooden box is suitable for cold rolling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.
When the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.
When the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.
Packaging and delivery
The company has the Shandong Dayang Steel Pipe Production Base Warehouse Area, Dadong Steel Pipe City Boutique Goods Yard Sales Area, etc., with an annual inventory of 70,000 tons.The annual round steel trade volume is 650,000 tons, with 50,000 tons of spot goods throughout the year, and the output value is about 6 billion yuan. The factory has eight pipe expansion production lines, mainly producing 300-1500mm outer diameter, with an annual output of 80,000 tons.
Customer visit
Adhering to the tenet of "strict management, good reputation, strong strength, and high-quality service", the company serves customers and friends at home and abroad with high standards of scientific environmental protection, professional innovation, and currently exports to more than 150 countries and regions in Europe, America, South America, the Middle East, Asia, etc., and the products are well received by everyone!
Factory
The factory focuses on the research and development and manufacturing of seamless steel pipes, oil casing processing for oil fields and gas cylinder steel pipe products. It currently has one hot-rolled seamless steel pipe production line. The production process of the hot-rolled seamless steel pipe production line adopts conical perforation, precision pipe rolling and three-roller micro-tension sizing. The production specifications are: Φ50-Φ273mm, wall thickness: 4.5-40mm, and the online equipped ultrasonic flaw detection system, eddy current flaw detection system and other product detection systems have reached the industry leading level.
