Duplex Stainless Pipe
Parameter: 1/2''~48'', SCH5~SCHXXS
End: Beveled End, Plain End
Service: Cutting, Welding, Fabricated, Customized
Classification :
Duplex Stainless Pipe
PRODUCT DETAILS
Description
Duplex Stainless Steel (DSS) including grades duplex 2205(S31803) and super duplex, they are commonly consist of 50% ferrite and 50% austenite, and generally requires not less than 30%. Duplex stainless steel has good welding performance and high strength. Compared with austenitic stainless steel, it is about double yield strength of stainless steel 316, 317 etc., it make the equipment lighter and stronger. Duplex stainless steel pipe has very good resistance to localized corrosion and stress corrosion cracking. Duplex steel is not intended to be used at temperatures above 300°C due to embrittlement, the continuous use temperature is from -50 to 250 °C.
Typical Properties:
Low cost
Alternative to high nickel based alloys
High strength
Corrosion resistant
Very hard machining
Applications
2205, used in chemical processing, oil and gas processing equipment, marine and other high chloride environments, effluent scrubbing systems, pulp and paper industry, cargo tanks for ships and trucks, food processing equipment, biofuels plant.
2304, used in chloride containing environments, welded pipe systems, transportation, heat exchanger tubes, construction, pressure vessels, caustic solutions and the food industry.
2507, used in oil and gas industry equipment, offshore platforms, chemical process industries, desalination plants, mechanical and structural components and power industry FGD systems.
Specification&Standard
|
Pipe OD |
Pipe WT |
in. |
Sch |
Kg/m |
|
13.72 |
1.65 |
1/4 |
10S |
0.50 |
|
13.72 |
2.24 |
1/4 |
40S |
0.64 |
|
13.72 |
3.02 |
1/4 |
80S |
0.81 |
|
17.15 |
1.65 |
3/8 |
10S |
0.64 |
|
17.15 |
2.31 |
3/8 |
40S |
0.86 |
|
17.15 |
3.20 |
3/8 |
80S |
1.12 |
|
21.34 |
2.11 |
1/2 |
10S |
1.02 |
|
21.34 |
2.77 |
1/2 |
40S |
1.29 |
|
21.34 |
3.73 |
1/2 |
80S |
1.65 |
|
26.67 |
2.11 |
3/4 |
10S |
1.30 |
|
26.67 |
2.87 |
3/4 |
40S |
1.71 |
|
26.67 |
3.91 |
3/4 |
80S |
2.23 |
|
33.40 |
2.77 |
1 |
10S |
2.13 |
|
33.40 |
3.38 |
1 |
40S |
2.54 |
|
33.40 |
4.55 |
1 |
80S |
3.29 |
|
33.40 |
6.352) |
1 |
160 |
4.30 |
|
42.16 |
2.77 |
1¼ |
10S |
2.73 |
|
42.16 |
3.56 |
1¼ |
40S |
3.44 |
|
42.16 |
4.85 |
1¼ |
80S |
4.53 |
|
42.16 |
6.352) |
1¼ |
160 |
5.69 |
|
48.26 |
2.77 |
1½ |
10S |
3.16 |
|
48.26 |
3.68 |
1½ |
40S |
4.11 |
|
48.26 |
5.08 |
1½ |
80S |
5.49 |
|
60.33 |
2.77 |
2 |
10S |
3.99 |
|
60.33 |
3.91 |
2 |
40S |
5.52 |
|
60.33 |
5.54 |
2 |
80S |
7.60 |
|
60.33 |
8.742) |
2 |
160 |
11.29 |
|
73.03 |
3.05 |
2½ |
10S |
5.35 |
|
73.03 |
5.16 |
2½ |
40S |
8.77 |
|
73.03 |
7.01 |
2½ |
80S |
11.59 |
|
88.90 |
3.05 |
3 |
10S |
6.56 |
|
88.90 |
5.49 |
3 |
40S |
11.47 |
|
88.90 |
7.62 |
3 |
80S |
15.51 |
|
88.90 |
11.132) |
3 |
160 |
21.67 |
|
101.60 |
3.05 |
3½ |
10S |
7.53 |
|
101.60 |
5.74 |
3½ |
40S |
13.78 |
|
101.60 |
8.08 |
3½ |
80S |
18.92 |
|
114.30 |
3.05 |
4 |
10S |
8.50 |
|
114.30 |
6.02 |
4 |
40S |
16.32 |
|
114.30 |
8.56 |
4 |
80S |
22.67 |
|
114.30 |
13.492) |
4 |
160 |
34.05 |
|
141.30 |
6.55 |
5 |
40S |
22.10 |
|
141.30 |
9.53 |
5 |
80S |
31.44 |
|
141.30 |
15.882) |
5 |
160 |
49.87 |
|
168.28 |
3.4 |
6 |
10S |
14.04 |
|
168.28 |
7.11 |
6 |
40S |
28.69 |
|
168.28 |
10.97 |
6 |
80S |
43.21 |
|
168.28 |
14.27 |
6 |
120 |
54.75 |
|
168.28 |
18.262) |
6 |
160 |
68.59 |
|
219.08 |
8.18 |
8 |
40S |
43.20 |
|
219.08 |
12.7 |
8 |
80S |
65.63 |
|
219.08 |
18.23 |
8 |
120 |
91.30 |
|
219.08 |
23.012) |
8 |
160 |
112.97 |
Note: For sizes other than given, please check with our office for further confirmation.
Grade Available : UNS S31803, UNS S32205, UNS S31500, UNS S32304, UNS S32750, UNS S32760
Specification :
ASTM A789 (ASME SA789): Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
ASTM A790 (ASME SA790): Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
ASTM A928 - Standard Specification for Ferritic/Austenitic (Duplex) Stainless Steel Pipe Electric Fusion Welded with Addition of Filler Metal
The specification of EN 10216-5 is available.
|
Grade |
Chemical Composition |
|||||||||
|
C (max) |
Si (max) |
Mn (max) |
P (max) |
S (max) |
Cr |
Ni |
Mo |
N |
Cu |
|
|
S32750 |
0.030 |
0.8 |
1.2 |
0.030 |
0.015 |
24.0-26.0 |
6.8-8.0 |
3.0-5.0 |
0.24-0.32 |
0.5 max |
|
S13803 |
0.030 |
1.0 |
2.0 |
0.030 |
0.020 |
21.0-23.0 |
4.50-6.50 |
2.50-3.50 |
0.08-0.20 |
|
Chemical Composition
|
Steel No. |
Standard No. |
Type |
Chemical composition |
Other |
||||||||||||
|
C |
Si |
S |
P |
Mn |
Cr |
Ni |
Mo |
Other |
ób |
ós |
δ5 |
HB |
||||
|
0Cr26Ni5Mo2 |
GB1220 |
Bar |
0.08 |
1 |
0.03 |
0.035 |
1.5 |
23-28 |
3-6 |
1-3 |
|
590 |
390 |
18 |
277 |
ψ%:40 |
|
0Cr26Ni5Mo2 |
GB4237 |
Plate |
0.08 |
1 |
0.03 |
0.035 |
1.5 |
23-28 |
3-6 |
1-3 |
|
590 |
390 |
18 |
277 |
|
|
0Cr26Ni5Mo2 |
GB/T14976 |
Pipe |
0.08 |
1 |
0.03 |
0.035 |
1.5 |
23-28 |
3-6 |
1-3 |
|
590 |
390 |
18 |
|
|
|
00Cr18Ni5Mo3Si2 |
GB1220 |
Bar |
0.03 |
1.3-2 |
0.03 |
0.035 |
1.2-1.6 |
18-19.5 |
4.5-5.5 |
2.5-3 |
|
590 |
390 |
20 |
|
ψ%:40 |
|
00Cr18Ni5Mo3Si2 |
GB4237 |
Plate |
0.03 |
1.3-2 |
0.03 |
0.03 |
1.2-1.6 |
18-19.5 |
4.5-5.5 |
2.5-3 |
N:0.1 |
590 |
390 |
20 |
|
|
|
HDR |
Q/SJB11-99 |
Pipe |
0.03 |
1 |
0.03 |
0.035 |
2 |
23-26 |
4.5-7.5 |
2-3 |
|
650 |
450 |
27 |
|
|
Physical Propertie
|
Grade |
Physical Propertie |
|||
|
Y.S. MPa (min) |
T.S. MPa (min) |
Elongation % |
Hardness HRC |
|
|
S32750 |
550 |
800 |
15 |
31 |
|
S13803 |
450 |
620 |
25 |
31 |

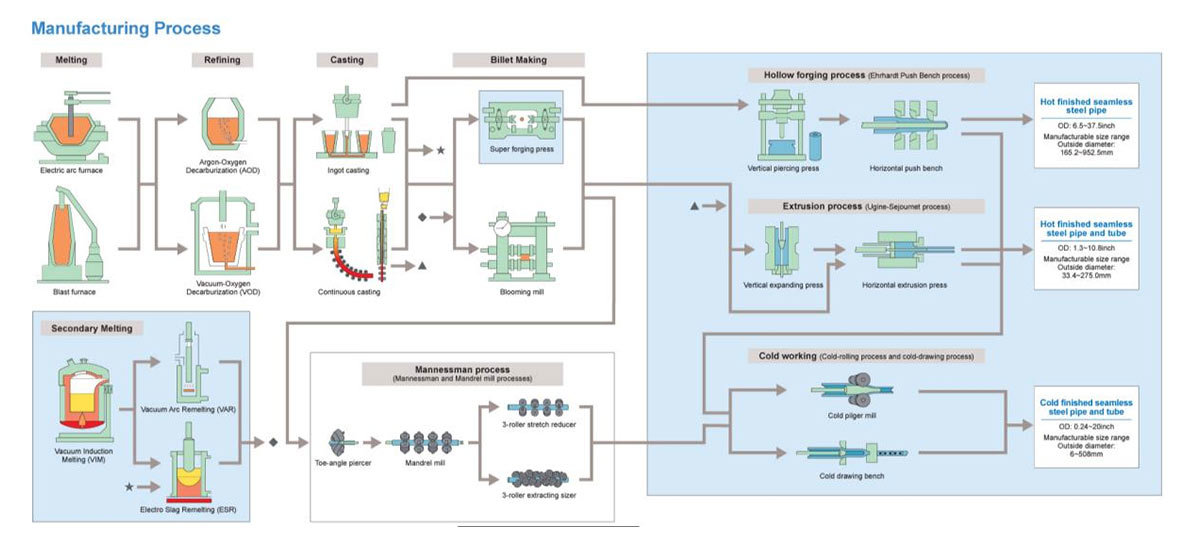

Process

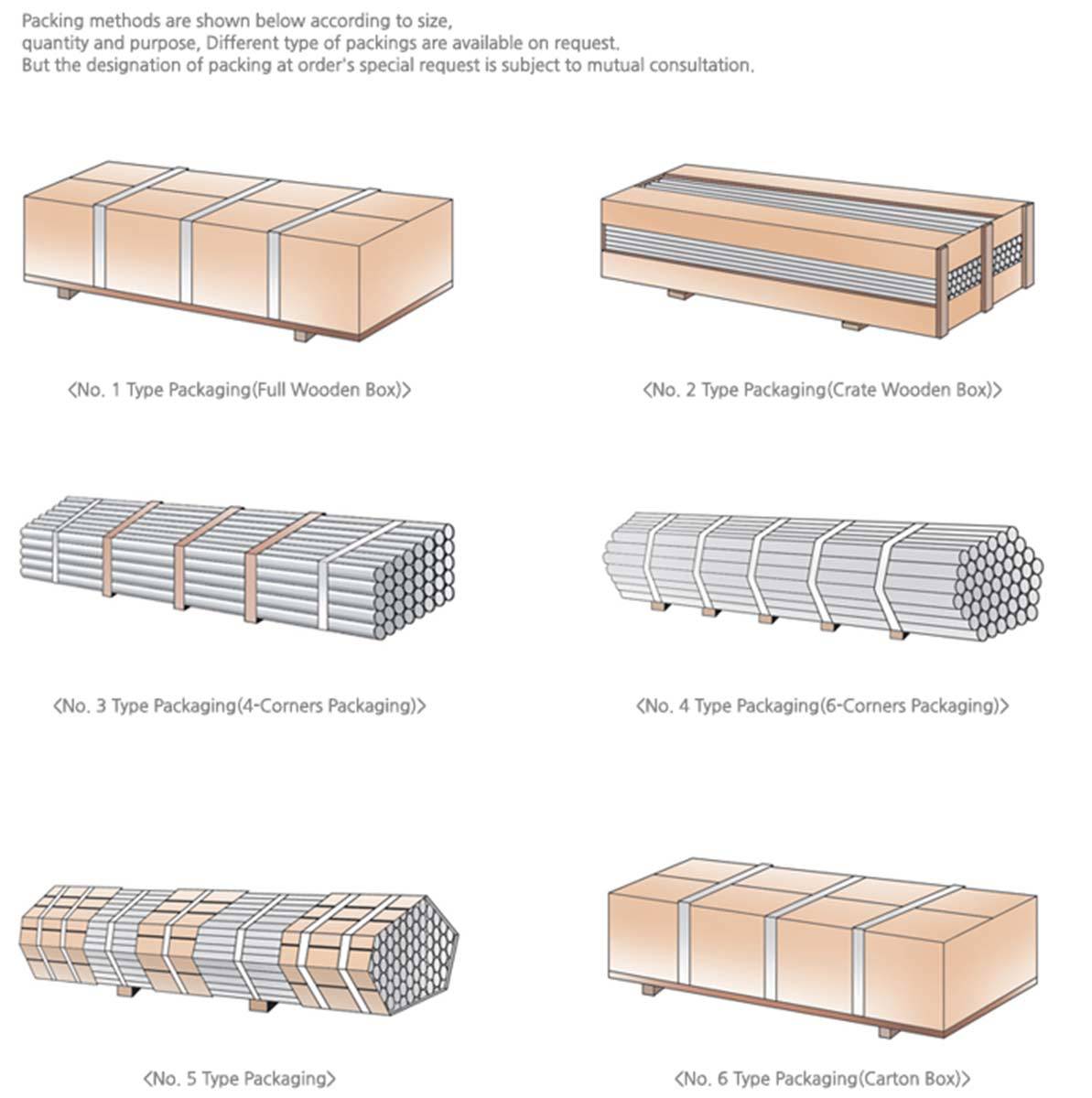

Packing
Packaging and delivery
The company has the Shandong Dayang Steel Pipe Production Base Warehouse Area, Dadong Steel Pipe City Boutique Goods Yard Sales Area, etc., with an annual inventory of 70,000 tons.The annual round steel trade volume is 650,000 tons, with 50,000 tons of spot goods throughout the year, and the output value is about 6 billion yuan. The factory has eight pipe expansion production lines, mainly producing 300-1500mm outer diameter, with an annual output of 80,000 tons.
Customer visit
Adhering to the tenet of "strict management, good reputation, strong strength, and high-quality service", the company serves customers and friends at home and abroad with high standards of scientific environmental protection, professional innovation, and currently exports to more than 150 countries and regions in Europe, America, South America, the Middle East, Asia, etc., and the products are well received by everyone!
Factory
The factory focuses on the research and development and manufacturing of seamless steel pipes, oil casing processing for oil fields and gas cylinder steel pipe products. It currently has one hot-rolled seamless steel pipe production line. The production process of the hot-rolled seamless steel pipe production line adopts conical perforation, precision pipe rolling and three-roller micro-tension sizing. The production specifications are: Φ50-Φ273mm, wall thickness: 4.5-40mm, and the online equipped ultrasonic flaw detection system, eddy current flaw detection system and other product detection systems have reached the industry leading level.
