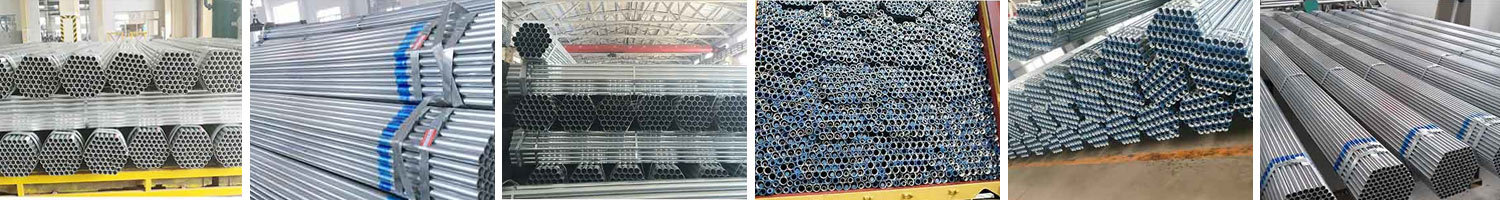

Galvanized Steel Pipe
Round pipe: 17mm-273mm
Square pipe:15mm x 15mm - 400mm x 400mm
Rectangular pipe: 10mm x 20mm -200mm x 400mm
Wall thickness:
Round pipe: 0.6mm-12mm
Square pipe:0.6mm-20mm
Rectangular pipe: 0.6mm-20mm
Length:2m-5.8m/6m/12m ( We can adjust length according to your request)
Standard:GB/T 3091 Q195/Q215/Q235/Q345, BS 1387, EN 39, EN 1139 S235JR/S275JR, ASTM A53 GR. A/B/C, JIS G3444 STK 400/STK 500
Pipe type:Seamless & Welded Steel Pipe (Round/Square/Rectangular)
End:Square Cut/Threaded, Burr Removed
Zinc Coating: 120~500 g/m2 （30um~70um）
Packing:Steel Strips bundled, Plastic Caps plugged, Waterproof Paper wrapped etc.
Classification :
Galvanized Steel Pipe
PRODUCT DETAILS
Description
Galvanized pipes have a wide range of uses. In addition to oil and other low-pressure fluid pipelines, it is also used as oil well pipes in the petroleum industry, especially in offshore oil fields, oil heaters in chemical coking equipment, coal distillation, and oil washing converter pipes, bridges, etc. Pipe pile, mining tunnel support frame with pipe, etc. Developed countries in the world started to develop new pipes and continuously banned galvanized pipes.
|
Thickness |
1-200mm；or as required |
Length: |
2000-16000mm，or as required |
|
Dimensions |
16-1020mm；(1/2inch~40inch)Dimensions |
Technique |
Hot Rolled Or Cold Rolle |
|
Zinc Coating |
pre galvanized steel pipe: 60-150g/m2 |
Surface treatment |
Cold galvanizing，Hot dip galvanized |
|
Certification: |
CE, ISO, SGS，BV，Mill Certificate |
Standard: |
ASTM，JIS，GB，DIN，EN |
|
price terms |
FOB,CRF,CIF,EXW, CPT |
Payment Terms |
T/T, L/C at sight,West Union |
|
Grade |
Q195—Grade B, SS330, SPC, S185 |
||
|
Q215—Grade C,CS Type B, SS330, SPHC， |
|||
|
Q235---Grade D, SS400, S235JR, S235JO, S235J2， |
|||
|
Q345---SS500, ST52，S355JR |
|||
|
Delivery Detail |
Standard has Stock; Normal About 3-5days; Custom-made 15-20days；According to order's quantity. |
||
|
Packing |
standard export packing (inside:water proof paper,outside:fumigated wooden box) |
||
Specification&Standard
hot-dip/cold galvanized steel pipe specification
|
regulation |
grid |
OD mm |
Wall thickness mm |
Minimum wall |
Welded pipe ( 6 m fixed length) |
Galvanized pipe ( 6 m fixed length) |
||
|
Nominal inner diameter |
inch |
|
Thick mm |
Meter weight kg |
Root weight kg |
Meter weight kg |
Root weight kg |
|
|
DN15 |
1/2 |
21.3 |
2.8 |
2.45 |
1.28 |
7.68 |
1.357 |
8.14 |
|
DN20 |
3/4 |
26.9 |
2.8 |
2.45 |
1.66 |
9.96 |
1.76 |
10.56 |
|
DN25 |
1 |
33.7 |
3.2 |
2.8 |
2.41 |
14.46 |
2.554 |
15.32 |
|
DN32 |
1.25 |
42.4 |
3.5 |
3.06 |
3.36 |
20.16 |
3.56 |
21.36 |
|
DN40 |
1.5 |
48.3 |
3.5 |
3.06 |
3.87 |
23.22 |
4.1 |
24.6 |
|
DN50 |
2 |
60.3 |
3.8 |
3.325 |
5.29 |
31.74 |
5.607 |
33.64 |
|
DN65 |
2.5 |
76.1 |
4 |
3.5 |
7.11 |
42.66 |
7.536 |
45.21 |
|
DN80 |
3 |
88.9 |
4 |
|
8.38 |
50.28 |
8.88 |
53.28 |
|
DN100 |
4 |
114.3 |
4 |
|
10.88 |
65.28 |
11.53 |
69.18 |
|
DN125 |
5 |
140 |
4.5 |
|
15.04 |
90.24 |
15.942 |
98.65 |
|
DN150 |
6 |
168.3 |
4.5 |
|
18.18 |
109.08 |
19.27 |
115.62 |
|
DN200 |
8 |
219.1 |
6 (welded pipe) |
|
31.53 |
189.18 |
|
|
|
DN200 |
8 |
219.1 |
6.5 hot-dip galvanizing |
|
|
|
36.12 |
216.72 |
GB / T 3091-2001 hot-dip galvanized pipe wall thickness deviation
|
name Weigh |
Chinese standard |
Enterprise standard |
Contrast conclusion |
||||||
|
Low pressure fluid conveying welded steel pipe |
Welded steel pipe |
||||||||
|
GB/T3091-2001 |
Q/YF01-2002 |
||||||||
|
1 |
Steel pipe outer diameter |
Steel pipe outer diameter, outer diameter allowable deviation |
Better than Chinese standards |
||||||
|
Outer diameter D/mm |
Tube outer diameter deviation mm |
Tube outer diameter Deviation mm |
Outer diameter D |
8″ |
± 0.60mm |
||||
|
D< 48.3 |
± 0.5mm |
|
5″-6″ |
± 0.50mm |
|||||
|
48.3<D < 168.3 |
± 1.0% |
|
4″ |
± 0.40mm |
|||||
|
168.3<D < 508 |
± 0.75% |
+2.4 -0.8 |
3″-“ |
± 0.30mm |
|||||
|
D>508 |
± 1.0% |
+3.0 -0.8 |
2″ or less |
± 0.20mm |
|||||
|
Wall thickness deviation |
± 12.5% |
Wall thickness S |
1.8 5.75mm |
5% |
|||||
|
2 |
Usual length |
Allowable deviation |
length |
Usual length |
Allowable deviation |
Better than Chinese standards |
|||
|
4M-12M |
+20 -0 |
2 inches or less |
5-0 |
||||||
|
Double length: 5-10mn ® should be left for each double in the usual length Margin |
+20 -0 |
2.5 inches – 4 inches |
5-0 |
||||||
|
5 inches or more |
15-0 |
||||||||
|
Special length |
20-0 |
||||||||
Standard: ASTM A53, BS1387-85, GB/T3091-08, DIN2440, JIS-G3444, EN10240, EN10255
Grade: Q195, Q215, Q235, Q345, S235JR, S275JR, STK400, STK500
API SPEC 5L — Specification for Line Pipe
ASTM A53/A53M — Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
ASTM A500 — Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes
BS 1387 — Specification for screwed and socketed steel tubes and tubulars and for plain end steel tubes suitable for welding or for screwing to BS 21 pipe threads
BS 1139 — Metal scaffolding. Specification for prefabricated mobile access and working towers
EN 39 — Loose steel tubes for tube and coupler scaffolds
EN 10255 — Non-alloy steel tubes suitable for welding and threading

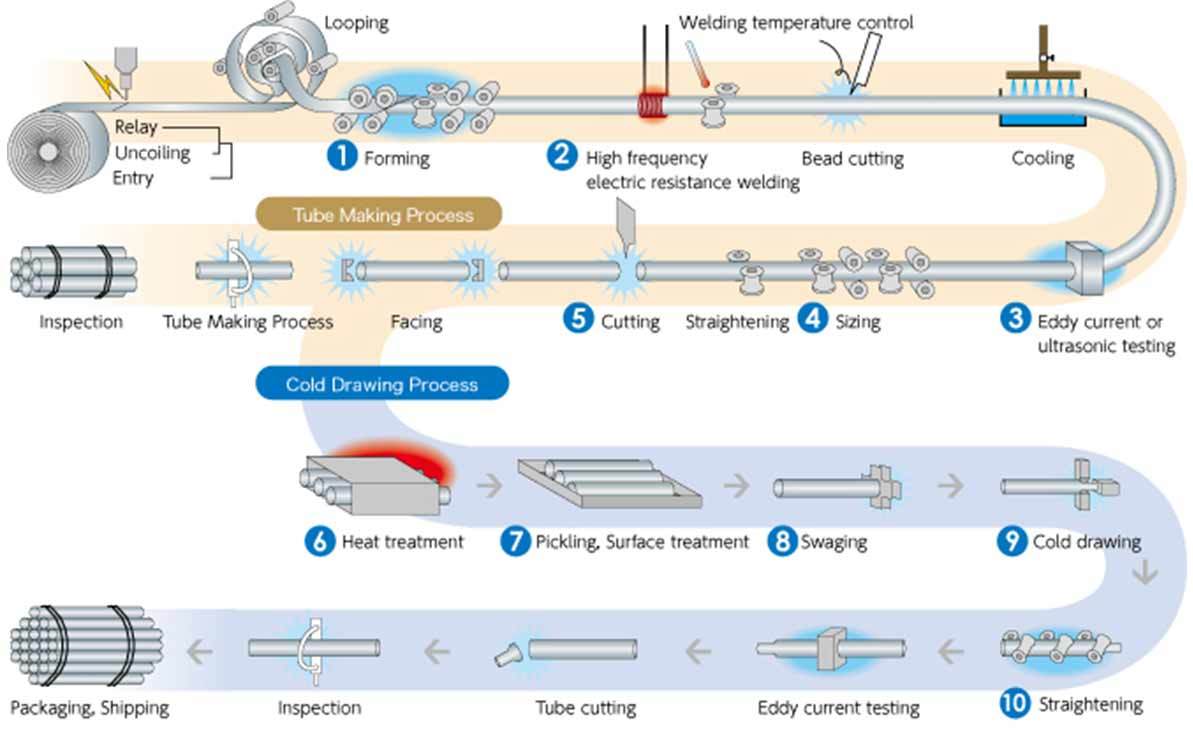

Process
Welded pipe inspection - pickling - washing - coating solvent - aligning - drying - hot galvanizing - external blowing - internal blowing - water cooling - intermediate inspection - passivation - drying - typing - packaging - final inspection
Packing
Packaging and delivery
The company has the Shandong Dayang Steel Pipe Production Base Warehouse Area, Dadong Steel Pipe City Boutique Goods Yard Sales Area, etc., with an annual inventory of 70,000 tons.The annual round steel trade volume is 650,000 tons, with 50,000 tons of spot goods throughout the year, and the output value is about 6 billion yuan. The factory has eight pipe expansion production lines, mainly producing 300-1500mm outer diameter, with an annual output of 80,000 tons.
Customer visit
Adhering to the tenet of "strict management, good reputation, strong strength, and high-quality service", the company serves customers and friends at home and abroad with high standards of scientific environmental protection, professional innovation, and currently exports to more than 150 countries and regions in Europe, America, South America, the Middle East, Asia, etc., and the products are well received by everyone!
Factory
The factory focuses on the research and development and manufacturing of seamless steel pipes, oil casing processing for oil fields and gas cylinder steel pipe products. It currently has one hot-rolled seamless steel pipe production line. The production process of the hot-rolled seamless steel pipe production line adopts conical perforation, precision pipe rolling and three-roller micro-tension sizing. The production specifications are: Φ50-Φ273mm, wall thickness: 4.5-40mm, and the online equipped ultrasonic flaw detection system, eddy current flaw detection system and other product detection systems have reached the industry leading level.
