3LPP Coated Pipe
Application: Used for natural gas, petroleum, water & sewage, and pipe systems
Standard:DIN30678
Size:DN50-DN2200
End:Plain End/Bevelled End, Burr Removed
Classification :
3LPP Coated Pipe
PRODUCT DETAILS
Description
3LPP Pipe Coating is a three layer polypropylene coating technique that uses polypropylene as the coating material. There are three layers in this coating. The outer layer is the polypropylene in the 3lpp pipe coating and there is a middle layer made up of adhesives to bond the epoxy layer inside that is fusion bonded. This special structure protects the material from a number of conditions and materials. The 3lpp pipeline coating is excellent in preventing the steel pipes from being in contact with corrosive chemicals and agents. Also the coating prevents the material to come into contact with any hard surfaced directly and prevents physical damage as well.
The 3lpp coated pipe can come in different specifications such as DIN30678, CSA Z245.21-02, NF A49-711, ISO 9001:2008. The coating is also resistant to cathodic disbondment, meaning, thee coating is not affected by electric charge which can damage most other types of coatings. The 3lpp pipe can last longer and has higher performance compared to non – coated or other types of coatings. The application of this special coating is mostly in the oil fields which operate under high temperatures. The Three Layer Polypropylene Coated Pipe can be used in abrasion prone applications such as drilling operations and in rocky surface applications.
|
3LPP means |
3 Layer Polypropylene Coating |
|
Minimum Pipe Diameter |
3.5" / 90 mm |
|
Maximum Pipe Diameter |
48"+ / 1220 mm + |
|
Minimum Temperature Range |
-20°C |
|
Maximum Temperature Range |
110°C (buried service) |
|
Specification |
· DIN 30670 · CSA Z245.21 · AS 4321 · IS 3581 |
|
Standard |
DIN 30670/ AWWA C200/ AWWA C210/ AWWA C213/ CSAZ245 |
|
Layers under 3LPP coating |
· 1st Layer : Fusion Bonded Epoxy (FBE) · 2nd Layer: copolymer adhesive · 3rt Top Layer: polypropylene |
Steel pipe material for 3LPP Coating
|
3LPP Stainless steel pipe |
ASTM A312, ASTM A269 Grade 304/ 316 Stainless steel Pipe |
|
3LPP API 5L Pipeline |
· API 5L line pipe · 3LPP Coated API 5L Grade B · API 5L X42/ X52/ X65/ X80, PSL1/ PSL2 |
|
3LPP Carbon steel pipe |
· ASTM A53 pipe (Grade B) · 3LPP Coated ASTM A106 pipe (Grade B/C) · ASTM A252 pipe · ASTM A134 and A135 · ASTM A333 (Grade 3/6) |
|
3LPP Alloy steel pipe |
ASME SA 335 / ASTM A335 P1/ P5/ P9/ P11/ P22/ P91 |
|
3LPP Nickel Alloy pipes |
ASTM B161, ASTM B622, ASTM B444 |
|
3LPP CRA clad / lined pipes |
|
Specification&Standard
The minimum thickness of anti-corrosion layers of 3LPP and 3LPE anti-corrosion systems
|
Pipe OD |
The minimum thickness of anti-corrosion layers (mm) |
|||||
|
PP |
PE |
FBE |
Adhesives |
3LPP total thickness |
3LPE total thickness |
|
|
≤100 |
1.3 |
2.0 |
0.3 |
0.2 |
1.8 |
2.5 |
|
> 100 and ≤ 250 |
1.5 |
2.2 |
0.3 |
0.2 |
2.0 |
2.7 |
|
> 250 and < 500 |
1.7 |
2.4 |
0.3 |
0.2 |
2.2 |
2.9 |
|
≥ 500 and < 800 |
2.0 |
2.7 |
0.3 |
0.2 |
2.5 |
3.2 |
|
≥800 |
2.0 |
3.2 |
0.3 |
0.2 |
2.5 |
3.7 |
The working life of 3LPP anti-corrosion (DIN 30678)
|
Operating Temperature ℃ |
Expected the shortest working life ( year) |
|
23 |
50 |
|
60 |
50 |
|
80 |
30 |
|
90 |
15 |
|
100 |
8 |
|
When used at where the temperature is changed, the working life can be concluded as above. |
|
DIN 30678-2013 Polypropylene coatings on steel pipes and Fittings
ISO 21809-1:2011 Petroleum and natural gas industries -- External coatings for buried or submerged pipelines used in pipeline transportation systems -- Part 1: Polyolefin coatings (3-layer PE and 3-layer PP)
NFA 49-711 External Coating with Three Polyproplene Layers Coating, Application by Extrusion
SHELL DEP 31.40.30.31-CSPC External Polyethylene and Polypropylene Coating for Line Pipe

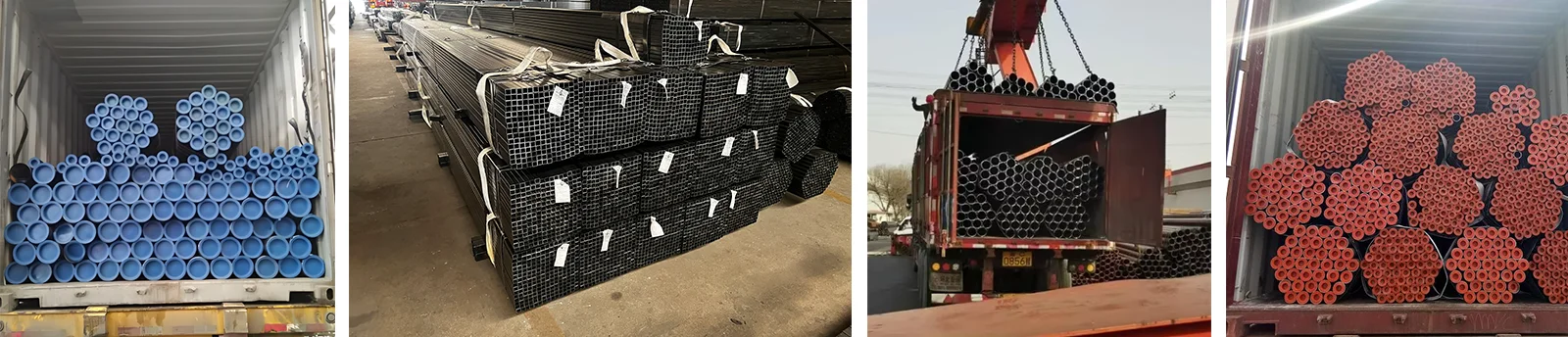

Packing
Bundled package
On bundle of steel tube shall be the same in batch number, steel grade and specification.the rest of tubing less than one bundle should be tied into small bundles.
The weight of each bundle should be less than 50kg.The max weight cannot exceed 80kg of the bundle If there are special requirements.
When the length of the steel tube is greater than or equal to 6m, with at least 8 strapping bands for each bundle, divided into 3 groups and 3-2-3.
When the length of the steel tube is less than 6m, and each bundle is tied at least 5 knots and divided into 3 groups, which are 2-1-2.
When the length of the tube is greater than or equal to 3m, and each bundle is tied with at least 3 bands, divided into 3 groups, 1-1-1 showed below
Wooden box package
The wooden box is suitable for cold rolling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.
When the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.
When the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.
Packaging and delivery
The company has the Shandong Dayang Steel Pipe Production Base Warehouse Area, Dadong Steel Pipe City Boutique Goods Yard Sales Area, etc., with an annual inventory of 70,000 tons.The annual round steel trade volume is 650,000 tons, with 50,000 tons of spot goods throughout the year, and the output value is about 6 billion yuan. The factory has eight pipe expansion production lines, mainly producing 300-1500mm outer diameter, with an annual output of 80,000 tons.
Customer visit
Adhering to the tenet of "strict management, good reputation, strong strength, and high-quality service", the company serves customers and friends at home and abroad with high standards of scientific environmental protection, professional innovation, and currently exports to more than 150 countries and regions in Europe, America, South America, the Middle East, Asia, etc., and the products are well received by everyone!
Factory

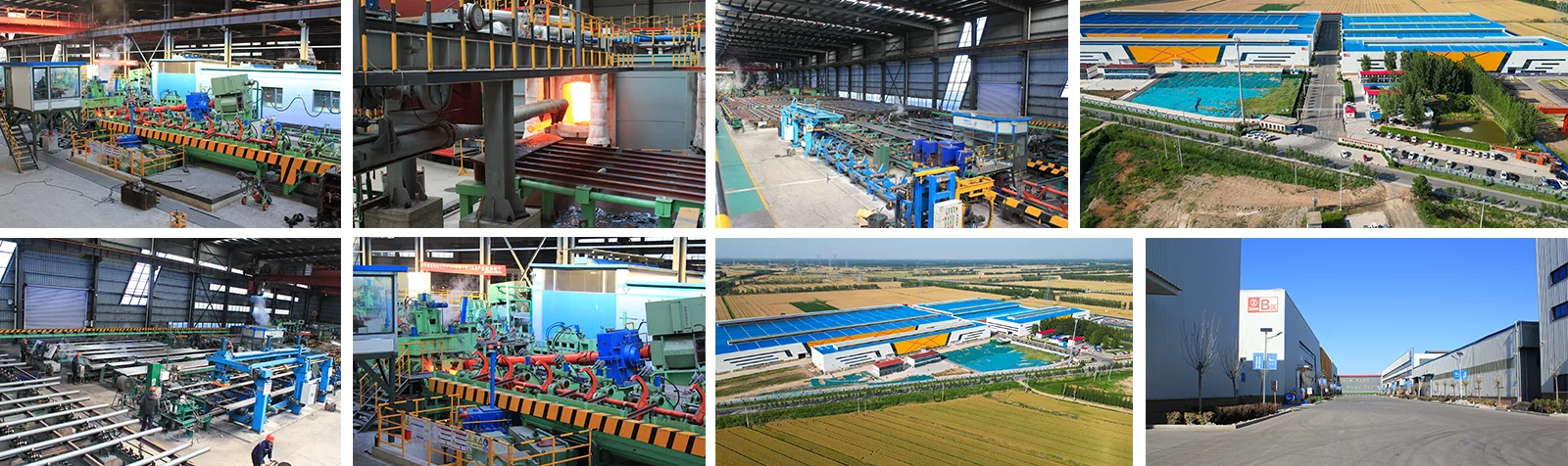

The factory focuses on the research and development and manufacturing of seamless steel pipes, oil casing processing for oil fields and gas cylinder steel pipe products. It currently has one hot-rolled seamless steel pipe production line. The production process of the hot-rolled seamless steel pipe production line adopts conical perforation, precision pipe rolling and three-roller micro-tension sizing. The production specifications are: Φ50-Φ273mm, wall thickness: 4.5-40mm, and the online equipped ultrasonic flaw detection system, eddy current flaw detection system and other product detection systems have reached the industry leading level.
