APL Series

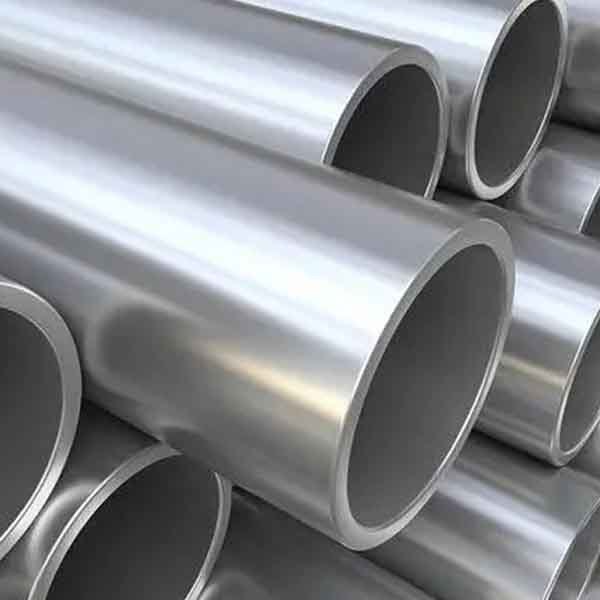

There are many types of OCTG, including casing, tubing, line pipe, etc. They have different uses in different occasions. For example, casing is mainly used in the drilling process to protect the well wall from corrosion; tubing is responsible for transferring crude oil from the oil well to the ground; and line pipe is used for the main line in the oil and gas transportation process. These pipes are usually made of high-strength, corrosion-resistant steel to cope with harsh working environments.
Dimension range (OD inch): 1-1/2”----4 1/2”
Dimension range (OD mm): 26.67----114.3
Type of upset: NUE, EUE, Plain end.
Standard: API SPEC 5CT
Main Steel Grade: H40, J55, N80, N80Q, L80, L80-1, L80-9Cr, L80-13Cr, P110 etc.
Type of Tubing: Non-upset tubing (NU), External-upset tubing (EUE), Integrated Joint (IJ).
Dimension range (OD mm): 26.67----114.3
Type of upset: NUE, EUE, Plain end.
Standard: API SPEC 5CT
Main Steel Grade: H40, J55, N80, N80Q, L80, L80-1, L80-9Cr, L80-13Cr, P110 etc.
Type of Tubing: Non-upset tubing (NU), External-upset tubing (EUE), Integrated Joint (IJ).
Application：Oil well casing serves as well sidewall
Pipe Standard：API SPEC 5CT
Size：OD: 114.3-508mm,WT: 5.21-16.13mm
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
Grade: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr,C95, P110.
Thread types:STC, LTC, BTC etc
Pipe Standard：API SPEC 5CT
Size：OD: 114.3-508mm,WT: 5.21-16.13mm
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
Grade: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr,C95, P110.
Thread types:STC, LTC, BTC etc
Application: Used as Walls Structural Retainers and Screen Pipes for Oil, Gas and Water Wells
Specification: OD: 50mm - 500mm;WT: less than 20mm;LENGTH: less than 15m
Slot&Holes Specification: as customer require
Standard & Grade: API , API5CT J55/K55/N80/C75/L80/C90/T95/Q125
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
End: Plain, Beveled, Square Cut, With LTC/STC/BTC Connection
Surface: Anti-corrosion&water Painting
Packing: Protection Caps in Both Ends, Waterproof Paper Wrapped
Specification: OD: 50mm - 500mm;WT: less than 20mm;LENGTH: less than 15m
Slot&Holes Specification: as customer require
Standard & Grade: API , API5CT J55/K55/N80/C75/L80/C90/T95/Q125
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
End: Plain, Beveled, Square Cut, With LTC/STC/BTC Connection
Surface: Anti-corrosion&water Painting
Packing: Protection Caps in Both Ends, Waterproof Paper Wrapped
Product: Pup Joint, OCTG Pup Point
Application: Pipe Cut into different lengths used to connect 2 joints of tubing or casing
Size: Tubing Coupling : 2-3/8'' - 4-1/2'', Casing Couping : 4-1/2'' - 20', Length: 2, 3, 4, 6, 8, 10, 12 ft
Pipe Standard: API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95
Surface: Coating
Thread: BTC, LTC, STC
Special Service: Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
Application: Pipe Cut into different lengths used to connect 2 joints of tubing or casing
Size: Tubing Coupling : 2-3/8'' - 4-1/2'', Casing Couping : 4-1/2'' - 20', Length: 2, 3, 4, 6, 8, 10, 12 ft
Pipe Standard: API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95
Surface: Coating
Thread: BTC, LTC, STC
Special Service: Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
